Manual 40k 100w Ultrasonic Cutting Machine
Introduction:
Ultrasonic cutting machine is a device that uses wave energy for cutting. The biggest feature is that it does not use traditional cutting edges.
Traditional cutting uses a knife with a sharp edge to press against the material being cut. The pressure is concentrated at the edge of the blade, and the pressure is very large, exceeding the shear strength of the material being cut, and the molecular bond of the material is pulled apart and cut. Since the material is pulled apart by strong pressure, the cutting edge of the cutting tool should be very sharp, and the material itself must withstand relatively large pressure. It is not good for cutting soft and elastic materials, and it is more difficult for viscous materials. Big. Ultrasonic cutting does not require too much cutting force, nor does it require a sharp edge like the traditional cold knife, so the cutting speed is faster than the traditional cutting method, and the wear of the tool is also reduced.
Advantage:
1. The incision is smooth and reliable
2. Fast cutting speed, non-stick knife
3. No sharp edges and a lot of pressure
4. Will not damage the cut material
Application:
1. Plastic and thermoplastic door cutting and punching.
2. Cutting for non-woven fabric or weaving, textile cutting, garment lace and fabric cutting. Edges are cut while the edges are cut.
3. Artificial resin, rubber cutting, raw rubber, soft rubber cutting.
4. Tape and all kinds of film cutting.
5. Paper cutting, printing industry cutting, printed circuit board, trademark.
6. Cutting food and plants, such as frozen meat, candy, chocolate.
7. For PVC, rubber, leather, plastic, cardboard, acrylic, polypropylene, etc.
8. Clothing fabric cutting
9. Cutting of packaging materials
10. Cut curtains, blackout fabrics
11. Cutting in the automotive industry
Specification:
| Model | HSQ40B-AB |
| Frequency | 40KHZ |
| Output Power | 100W |
| Generator | Analog generator, 155 x 265 x 170mm |
| Handle | Φ32×170 |
| Size of cutter | Blade replaceable |
| Length of cable | |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs |
| Material of cutter | titanium alloy, stainless steel |
Product Tags:
|
|

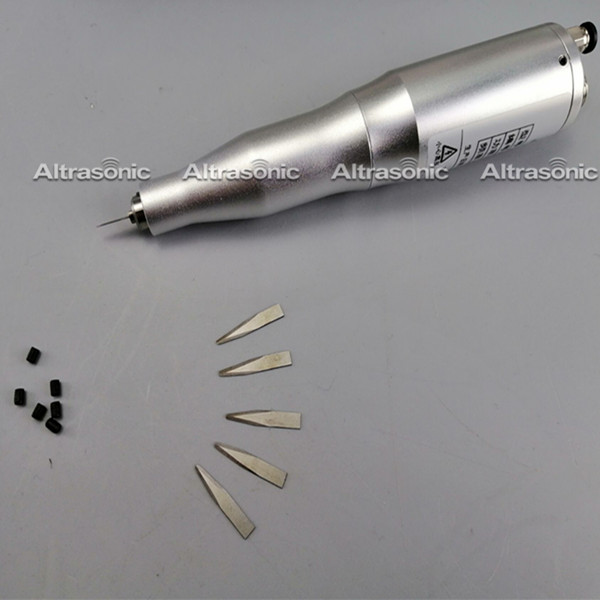

Manual 100w 40khz Ultrasonic Cutting Machine Images
|
