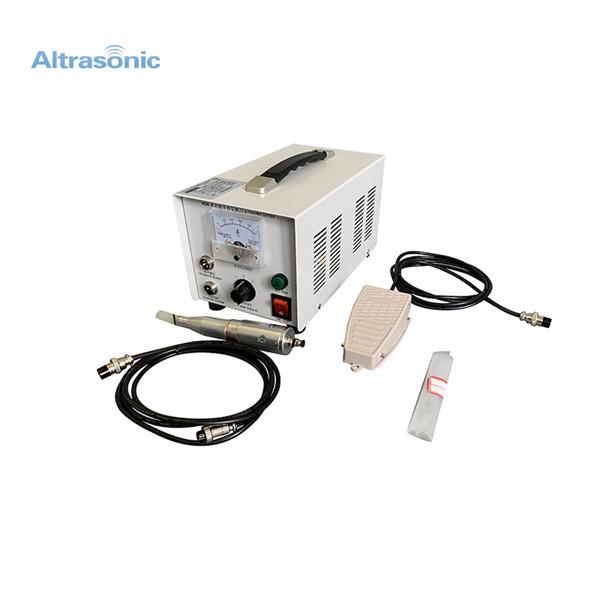

Replaceable Blades Portable Ultrasonic Cutter For Nonwoven Cloths
Specification:
| Model | HS-C40 |
| Frequency | 40KHZ |
| Output Power | 100W |
| Generator | Analog generator, 155 x 265 x 170mm |
| Handle | Φ32×170 |
| Size of cutter | Blade replaceable |
| Length of cable | |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs |
| Material of cutter | titanium alloy, stainless steel |
Introduction:
Ultrasonic cutting does not require a sharp edge, nor does it require a lot of pressure, and will not cause chipping or breakage of the material being cut. At the same time, because the cutting knife is doing ultrasonic vibration, the friction resistance is very small, and the material to be cut is not easy to stick to the blade. This is particularly effective for cutting viscous and elastic materials, frozen materials such as food, rubber, etc., or objects that are inconvenient to apply pressure.
Application:
1. Plastic and thermoplastic door cutting and punching.
2. Cutting for non-woven fabric or weaving, textile cutting, garment lace and fabric cutting. Edges are cut while the edges are cut.
3. Artificial resin, rubber cutting, raw rubber, soft rubber cutting.
4. Tape and all kinds of film cutting.
5. Paper cutting, printing industry cutting, printed circuit board, trademark.
6. Cutting food and plants, such as frozen meat, candy, chocolate.
7. For PVC, rubber, leather, plastic, cardboard, acrylic, polypropylene, etc.
8. Clothing fabric cutting
9. Cutting of packaging materials
10. Cut curtains, blackout fabrics
11. Cutting in the automotive industry
Transport and packaging:
