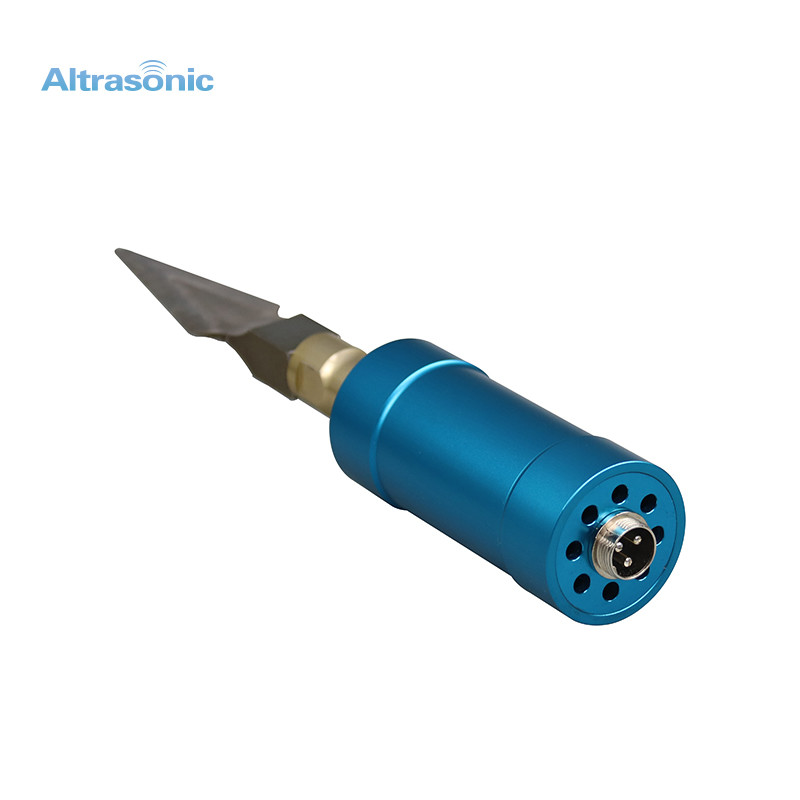

255mm Probe 25kHz Ultrasonic Cutting Machine With Digital Generator
Products Description:
It is suitable for cutting thick, thick, long and other materials that are not convenient to set up cutting boards. Such as raw rubber slitting, pipe cutting, frozen meat, candy, chocolate cutting, printed circuit board and so on. In order to meet the needs of embossing and cutting, adding a cylindrical flower wheel on the cutting chopping board can cut endless patterns and patterns with low cost and high efficiency. This cutting method is suitable for the cutting of sheet-like materials, such as various trademarks, clothing laces, cloth cutting, decorative beads cutting, natural fibers, synthetic fibers, non-woven fabrics, man-made resins, paper, film cutting, slitting, and so on.
Specification:
| Item No | HS-C25 |
| Frequency | 25kHz |
| Power | 500W |
| Input | AC110-240V, 50/60Hz |
| Cutting material | Non-metal thin film materials |
| Material of cutting | Die steel |
| Total length of ultrasonic probe | 255mm |
| Cable length | 150-300cm |
| Cutting thickness range | 0-12mm |
Main features:
■ Automatic resonance point, automatic frequency sweep tracking within the frequency range of 19-25KHz.
■ Automatic amplitude compensation, which can automatically work at the best frequency point and output point according to the fluidity of the sample.
■ Adopt color industrial touch screen controller, all functions are integrated display.
■ Scientific design, 10 groups of users store settings and realize directly on a single machine.
■ Independent on/off pulse, with three modes of continuous use, pulse, and timed continuous ultrasound.
Conditions of use:
1. Ambient temperature: 0～60℃
2. Relative humidity: no more than 85% (T=20℃)
3. Power supply: 220V/50Hz±10%
4. Cutting knife temperature: 0～120℃
5. Processing object: non-metal thin film materials
Detailed images:
