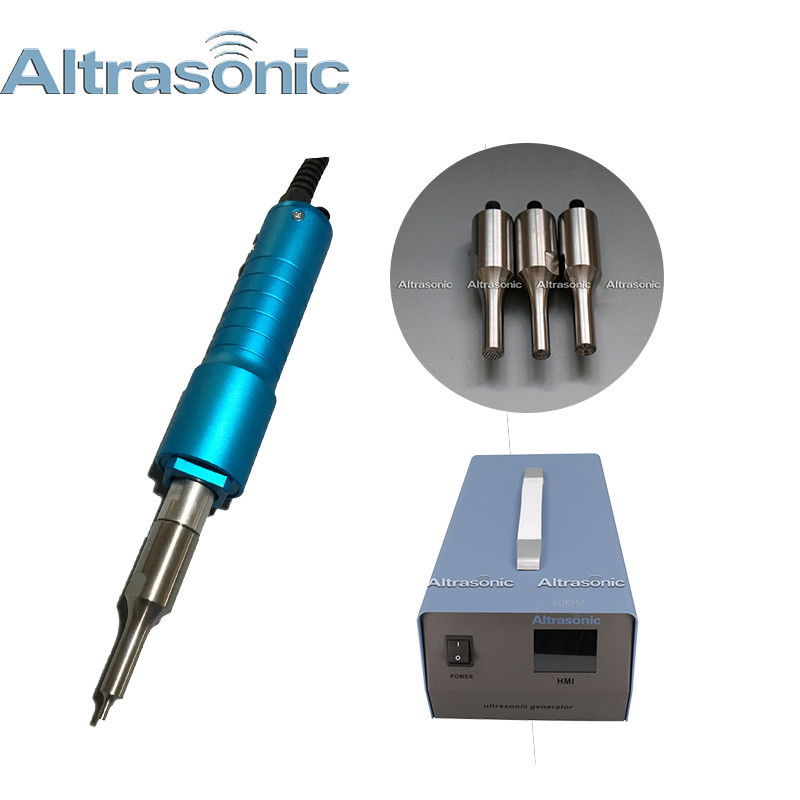

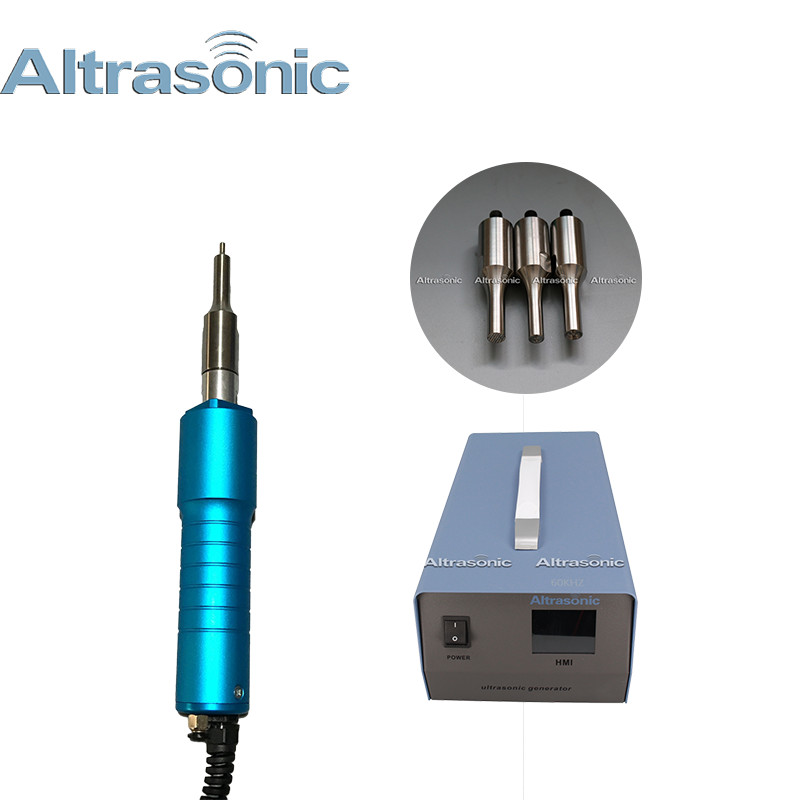

28Khz Ultrasonic Welding Machine With Digital Generator And Customized Titanium Horn
Specifications:
| Model | HS-40 | HS-35 | HS-30 | HS-28 | HS-20 |
| Frequency | 40Khz | 35Khz | 30Khz | 28Khz | 20Khz |
| Power | 500W | 500-800W | 500-800W | 500-800W | 500-1000W |
| Horn | ≤10mm | ≤10mm | ≤10mm | ≤12mm | ≤1m |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 64mm |
| Weight of welder | 1.0Kg | 1.0Kg | 1.0Kg | 1.0Kg | 1.5KG |
Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.
Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
Description:
Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K, 30K three different frequencies.
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
Portable Ultrasonic Plastic Spot welding gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.
Applications:
Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.
| Toy industry | Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Electronic products | Recording, audio tape boxes and core wheel, disk enclosure, board of mobile phone batteries and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, etc |
| Household appliances | Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-hsiang, computer, etc |
| Stationery, daily necessities | Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell,the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container |
| Car, motorcycle | Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding |
| The application of the sports industry | Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps,gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path to indicate the brand, the X Display Stand and other sports equipment, etc |
| The packaging industry | Hollow crate welding, ziplock welded |
Competitive Advantage:
Rapid sonotrode exchange
High quality, heavy duty aluminum housing
High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet
Timer-controlled air cooling as an option
Mobile – can be transported by handle on the generator case
