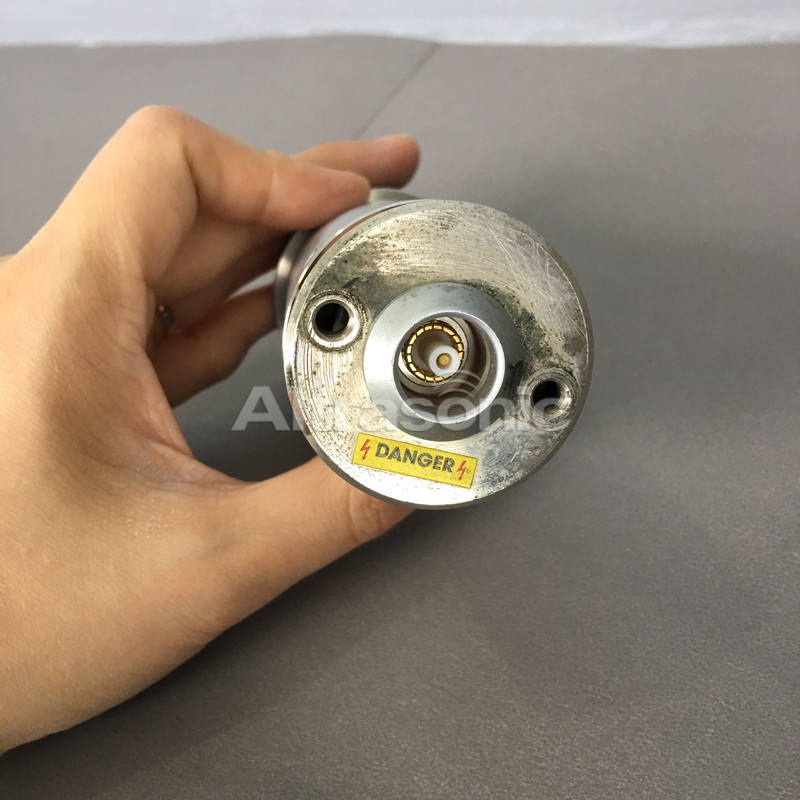

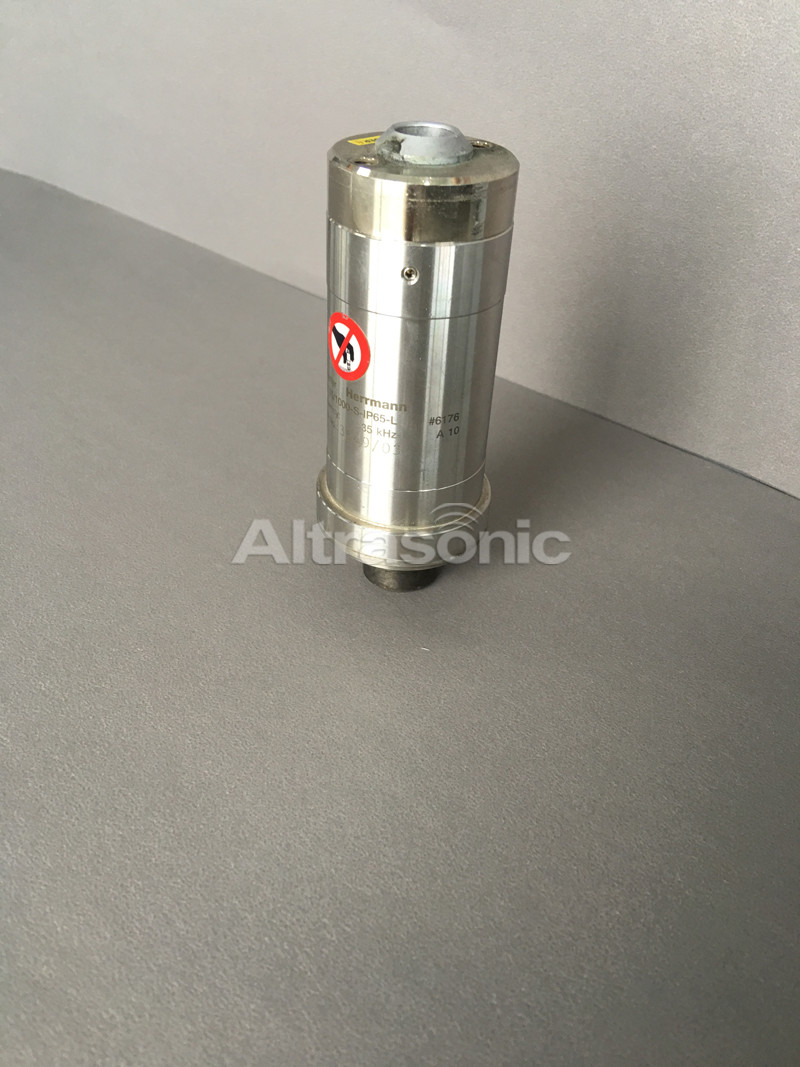

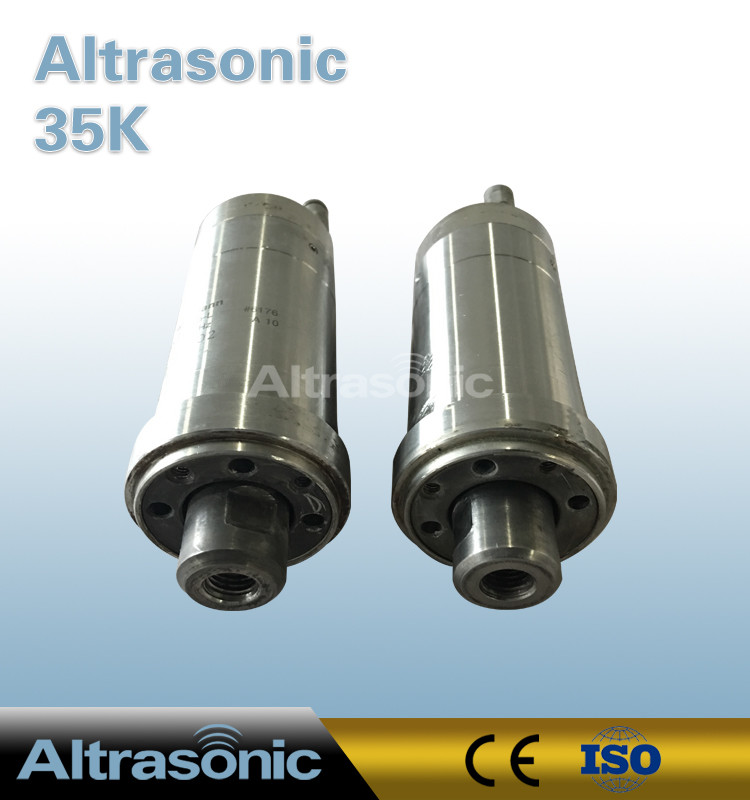

Replacement 35Khz 1200Watt Herrmann Ultrasonic Converters With Protective Housing
Specifications:
| Model | HSHM35 |
| Frequency | 35 khz |
| Output power | 1000 watt |
| Joint bolt | M18 * 1.5 |
| Capacitance | 5000-8000pf |
| Amplitude | 10 um |
| Application | welding machine |
Description:
The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Typeis applied to Herrmann type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Repair 35khz Ultrasonic Herrmann Converters 35/1000-S-IP65 Type
