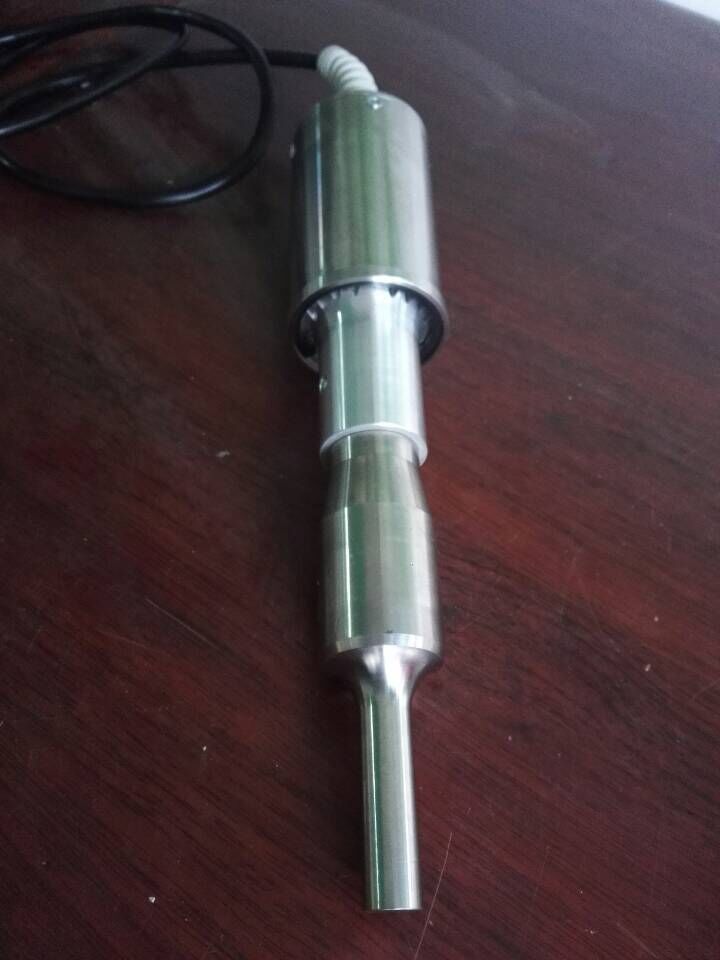

1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding

Name: 1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding
Brand: Altrasonic
Price: 1 USD

Buy cheap 1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding product

Brand Name : Altrasonic

Model Number : HSW20

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 3,000 units per month

Delivery Time : 7 weekdays after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Item No. : HSW20

Frequency : 20kHz

Power : 1000W

Horn : ≤12mm

Housing Diameter : 44mm

Color : Bule and Silver

Shipping : TNT UPS DHL FEDEX

Warranty : 1 year

Contact Now

1000W 20kHz Ultrasonic High Power Spot Welding System for Auto Parts Welding

Description:

Ultrasonic welding of thermoplastics causes local melting of the plastic due to absorption of vibration energy. The vibrations are introduced across the joint to be welded. In metals, Ultrasonic welding occurs due to high-pressure dispersion of surface oxides and local motion of the materials. Although there is heating, it is not enough to melt the base materials. Vibrations are introduced along the joint being welded.

Ultrasonic is not limited to only thermoplastic materials. An ultrasonic assembly process can also be used to install threaded brass inserts into molded plastic bosses; stake plastic bosses over metal plates or printed circuit boards; swage over standing walls to entrap another component; perform continuous line seals on thin films and fabrics; seal the ends of collapsible squeeze tubes; accomplish perimeter seals on clam shell packages; spot weld corrugated plastic sheets in the manufacture of boxes; and much more.

Specification:

Item No.	HSW20	HSW30	HSW35	HSW40	HSW60
Frequency	20kHz	30kHz	35kHz	40kHz	60kHz
Power	1000W	1200W	1000W	500W	300W-500W
Horn	≤12mm	≤10mm	≤10mm	≤10mm	≤10mm
Housing Diameter	44mm	44mm	44mm	44mm	44mm
Weight of Welder	1.0kg	1.0kg	1.0kg	1.0kg	1.0kg

Advantage:

1. Short welding times (in the order of tenth of seconds)

2. Aesthetic perfection

3. Waterproof welding stable for a long time

4. Labor savings

5. Energy-efficient

6. Flexibility

7. Possibility of welding even in the presence of foreign bodies

8. Excellent mechanical seal

9. Eliminating the use of solvents and adhesives.

Application:

Appliance	In this high-volume market, hermeticity, strength and also cosmetic appearance are important. Applications include: steam iron, pump housing, vacuum cleaner wand, and dishwasher spray arm.
Automotive	Hermetic seals in applications such as lenses, filters and valves. Other applications include: glove box door, instrument cluster, air diverter and mass airflow sensor.
Business	"Clean" assemblies with reduced particulate matter are produced on information storage discs. Other applications include the assembly for ribbon cartridges, and audio and video cassettes.
Consumer	Precision welding, staking and forming operations are used in the manufacture of the Swatch®.
Electrical	Multiple staking and inserting applications are often automated for high-volume production requirements with consistent reliability. Applications include: terminal blocks, connectors, switches (e.g. toggle, dip, rotary quick and diaphragm), and bobbin assemblies.
Medical	Non-contamination and the ability to be operated in a clean room are as important as the strength of the weld. Reliable, repeatable assemblies for critical life-support devices are produced with new capabilities in process control. Applications include: arterial filter, cardiometry reservoir, blood/gas filter, face mask and IV spike/filter.
Packaging	From aseptic packages to toothpaste tubes, the ability of ultrasonic assembly to seal through product contamination in the joint area is a major advantage. In addition to good cosmetic appearance, ultrasonic assembly provides tamper-evident seals for blister packs. Applications include: condiment dispenser, blister package, juice pouch, juice carton and plastic coated paper cups.
Toys	In this highly competitive industry, the elimination of adhesives, screws and solvents, or other consumables is a bonus added to strong, safe, flash-free assemblies.

1000W 20kHz Ultrasonic Spot Welding Machine High Power For Auto Parts Welding
