30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Name: 30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty
Brand: Altrasonic
Price: 1 USD

Buy cheap 30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty product

Brand Name : Altrasonic

Model Number : HS-GD30

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : Within 7 weekdays after receipt total amount

Packaging Details : Carton or Wooden Case

Frequency : 30khz

Voltage : 220V

Cycle Rate : 220CPM

Warranty : 1 Year

Theory : Ultrasonic Sensor

Output power : 600w

Contact Now

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy, even reach 70khz. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.

Specifications:

Model	HS-G-D30
Frequency	30khz
Output power	600watt
Frequency tuning method	Auto tuning
Voltage	220V 50/60HZ
Currents	10A
Environment temperature	5-50℃
Cycle Rate	200CPM
Moisture	≤85%RH

Comparison:

	Analog generator	Digital generator
Circuit	Analog circuit, discrete components	Digital circuit, the chip control
Automatic search	×	√
Automatic frequency tracking	×	√
Frequency adjustment range	±0.15 KHz	±0.5 KHz
Power regulation	×	√
24 hours of continuous work	×	√
Non resonant condition	×	√
LCD	×	√
Add the PLC protocol	×	√
Automatic circuit protection	Bad, easy to cause the damage of components	Good
Repair method	Professional repair	Module replacement

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.

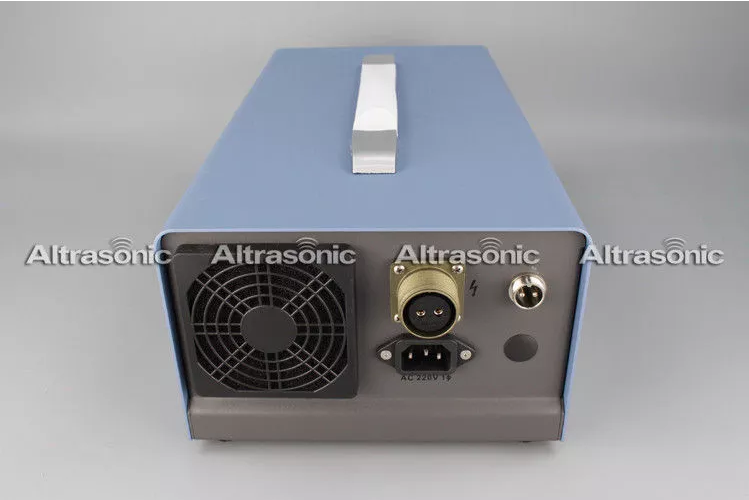

Detailed images:

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Factory workshop:

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty
