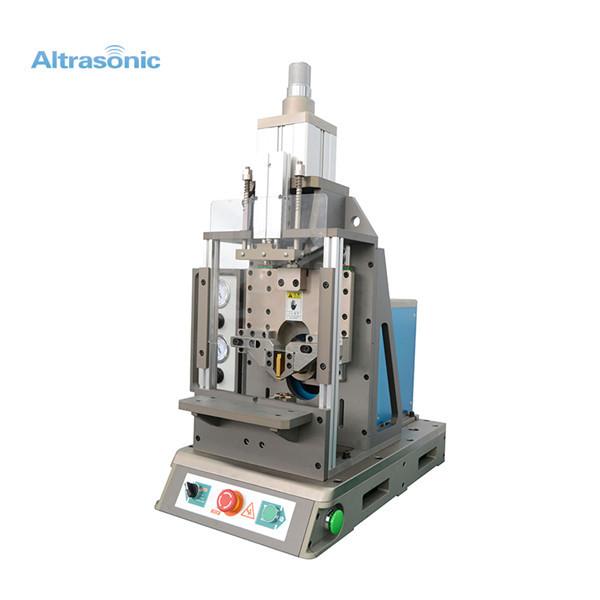

Good Quality Copper Tube Ultrasonic Metal Welding Machine 20kHz 3000W
Description:
Ultrasonic copper tube sealing machine uses high-frequency vibration waves to transmit to the surface of copper tube and aluminum tube, and under pressure, the two metal surfaces rub against each other to form fusion between molecular layers.
Specification:
| Model | HS-2030F |
| Power | 3000W |
| Pipe diameter | Φ2-12mm |
| Working air pressure | 0.05-0.09MPa |
| Ultrasonic frequency | 20KHZ |
| Working voltage | 220V |
Applications:
1. Air conditioning HVAC system and refrigerator copper pipe sealing.
2. Capillary and bulb temperature sensor.
3. Products that require sealing and welding of copper or aluminum pipes.
4. Diameter of weldable metal pipe: 2~12mm.
Advantages:
1. Ultrasonic copper tube sealing machine is suitable for sealing copper tubes such as medicine, cosmetics, health products, food, lubricating oil, toothpaste, shoe polish, facial cleanser, glue, etc.
2. The ultrasonic copper tube sealing machine adopts the core circuit of Taiwan, and uses the ultrasonic principle to seal the tail of the copper tube and the composite tube. Good work stability, high efficiency, and superior performance of each component.
3. The ultrasonic copper tube sealing machine has a small appearance, humanized design, and easy operation.
4. Simple operation, convenient assembly and easy maintenance.
5. The ultrasonic copper tube sealing machine can store 9 sets of parameters for production according to different products.
6. High welding efficiency.
7. Automatic calibration frequency function of ultrasonic copper tube sealing machine.
8. Electronic voltage stabilization function.
9. Digitally control the amplitude with an accuracy of +/- 1μm.

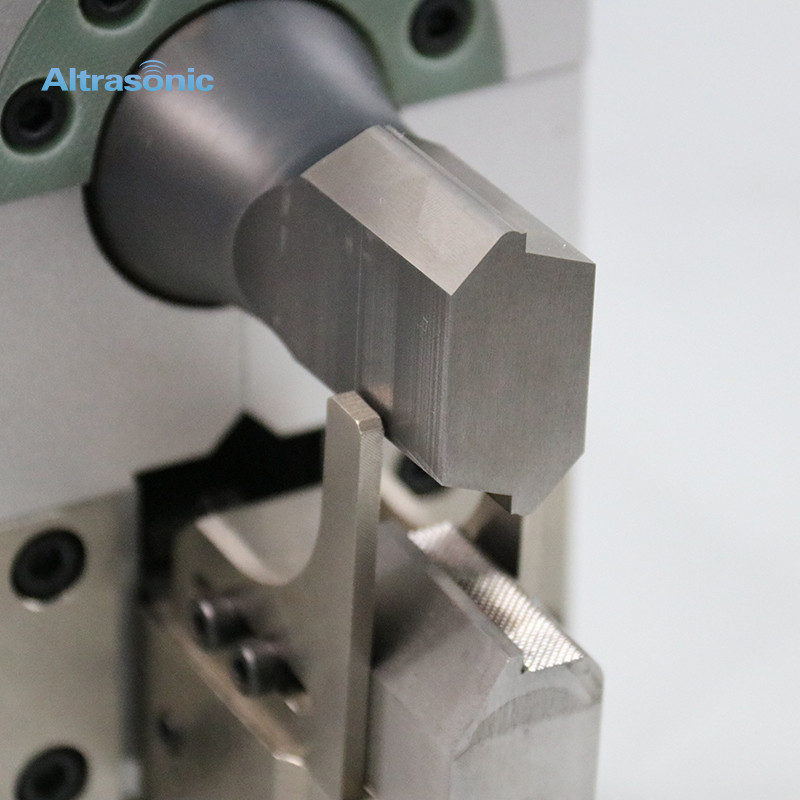

Pictures:
