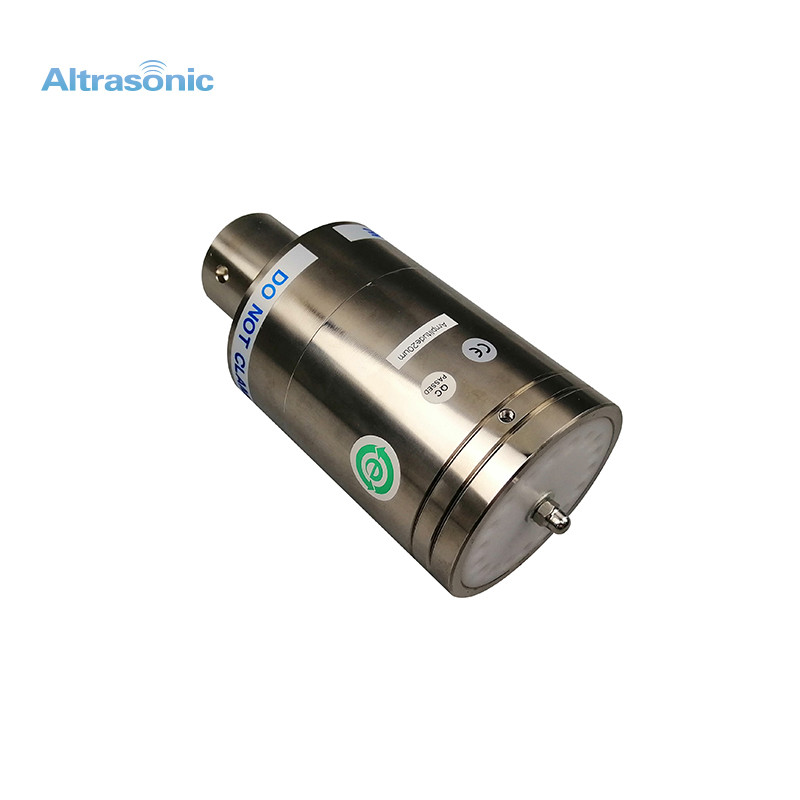

3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HS-BCJ20

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic converter

Frequency : 20Khz

Ceramic diameter : 50 mm

Capacitance : 19-21 nf

Power : 3300W

Application : Plastic welding Machine

Ceramic disc : 6 pcs

Material : Titanium, Aluminum materials optional

Protective outer cover : Aluminum and stainless steel optional

Delivery time : 7workdays

Contact Now



20Khz 3300w Ultrasonic Welding Converter Replacement Brason CJ20 Transducer



Specifications:

Model
HSBCJ20
Frequency
20 khz
Output power
3300 watt
Joint bolt
1/2-20 UNF
Ceramic disc Diameter
50 mm
Quantity of Ceramic discs
6 pcs
Capacitance
19-21 nf
Amplitude
20 um
Application
welding machine

Description:

Piezoelectric ultrasonic transducers converter used in a wide range of applications. These devices enable ultrasonic welding equipment to work effectively in commercial and industrial environments.

Applied Range:

Replacement ultrasonic converter for Dukane 110-3122,
for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantages:

1. Low heat
2. High efficiency
3. Large amplitude
4. Fast delivery
5. Competitive price
6. Stable output is not affected by load changes


What we can do for you

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Product Display

3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer3300 Watt Ultrasonic Welding Converter 20Khz For Branson CJ20 Transducer
