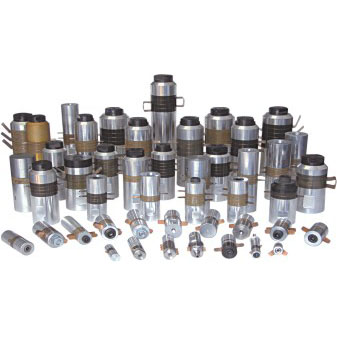

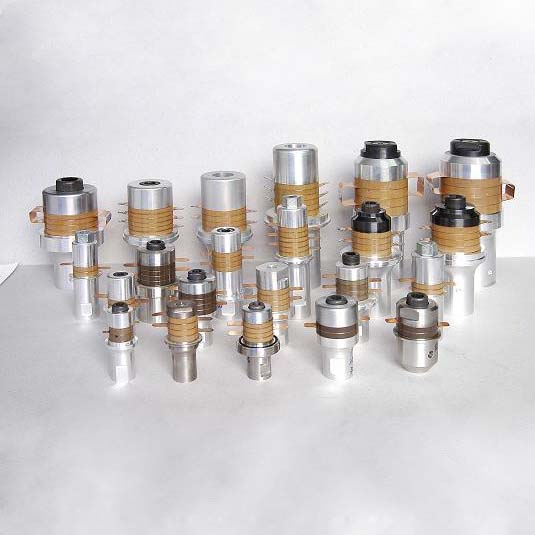

Industrial High Temperature Ultrasonic Transducer Branson Type 1 / 2 20UNF
Specifications:
| The columnar type NTK TYPE (stabilized power and high reliablity widely application) |
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) |
| | | | | | | Yellow | Grey | Black | | |
| 7015-4Z | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 |
| 6015-4Z | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 |
| 6015-6Z | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 |
| 5015-4Z | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 |
| 4015-4Z | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | | 700 | 8 |
| 5520-4Z | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 |
| 5020-6Z | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 |
| 5020-4Z | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 |
| 5020-2Z | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 |
| 4020-4Z | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 |
| 4020-2Z | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 |
| 5025-2Z | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 |
| 3828-2Z | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 |
| 3828-4Z | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 |
| 3028-2Z | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 |
| 2528-4Z | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 |
| 2528-2Z | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 |
| 3030-4Z | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 |
| 3035-2Z | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 |
| 3035-4Z | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 |
| 2535-2Z | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 |
| 2540-2Z | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 |
| 3040-4Z | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 |
| 3050-4Z | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 |
| 1560-2Z | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 |
| 1070-2Z | M4 | 10 | 2 | 70 | 200 | / | / | 350-400 | 100 | 1 |
| The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) |
| Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) |
| | | | | | | Yellow | Grey | Black | | |
| 7015-4D | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 11 |
| 6015-4D | M18 X 1.5 | 60 | 4 | 15 | 15 | 9000-10000 | 10000-11000 | / | 2200 | 11 |
| 6015-6D | 1/2-20UNF | 60 | 6 | 15 | 15 | 19000-20500 | / | 23000-25000 | 2600 | 11 |
| 5015-6D | 1/2-20UNF | 50 | 6 | 15 | 15 | 17000-19000 | / | 23000-25000 | 2000 | 11 |
| 5020- 4DS | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | / | 1300 | 8 |
| 5020-4D | 1/2-20UNF | 50 | 4 | 20 | 15 | 11000-12000 | 12000-13500 | 14500-16000 | 1500 | 8 |
| 5020-6D | 1/2-20UNF | 50 | 6 | 20 | 15 | 19000-21000 | / | 22500-25000 | 2000 | 10 |
| 4020-6D | 1/2-20UNF | 40 | 6 | 20 | 15 | 13500-15000 | / | / | 1500 | 10 |
| 4020-4D | 1/2-20UNF | 40 | 4 | 20 | 15 | 8500-9300/ 9500-10500 | 10000-11000 | 10500-11500 | 900 | 8 |
| 3020-6D | 3/8-24UNF | 30 | 6 | 20 | 15 | 8000-9000 | / | / | 600 | 9 |
| 3030-4D | M8 or M8 X 1 | 30 | 4 | 30 | 20 | / | 6200-6900 | / | 800 | 5 |
| 3535-2D | M8 X 1 | 35 | 2 | 35 | 25 | / | / | 4500-5000 | 600 | 9 |
| 3535-4D | M8 X 1 | 35 | 4 | 35 | 20 | 6600-7400 | / | 9000-10000 | 1000 | 4 |
| 3035-4D | 1/2-20UNF | 30 | 4 | 35 | 20 | 5500-6200 | / | 9200-10200 | 800 | 4 |
| 2535-4D | M8 | 25 | 4 | 35 | 25 | 3900-4300 | / | / | 500 | 4 |
| 3040-2D | M8 | 30 | 2 | 40 | 30 | / | 3400-3800 | / | 500 | 2 |
| 2540-4D | M8 | 25 | 4 | 40 | 30 | 4500-5300 | / | / | 500 | 3 |
| 2040-2D | M8 | 20 | 2 | 40 | 40 | 1100-1300 | 1150-1350 | / | 300 | 2 |
PS:we can also customize depend on your requirements.
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
The applications of ultrasonic welding are extensive and are found in many industries including electrical
and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically
welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main
obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and
meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding
thermoplastics. It is fast and easily automated with weld times often below one second and there is no
ventilation system required to remove heat or exhaust.
Competitive Advantage:
1. Imported ceramic discs and superior aluminum raw materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
