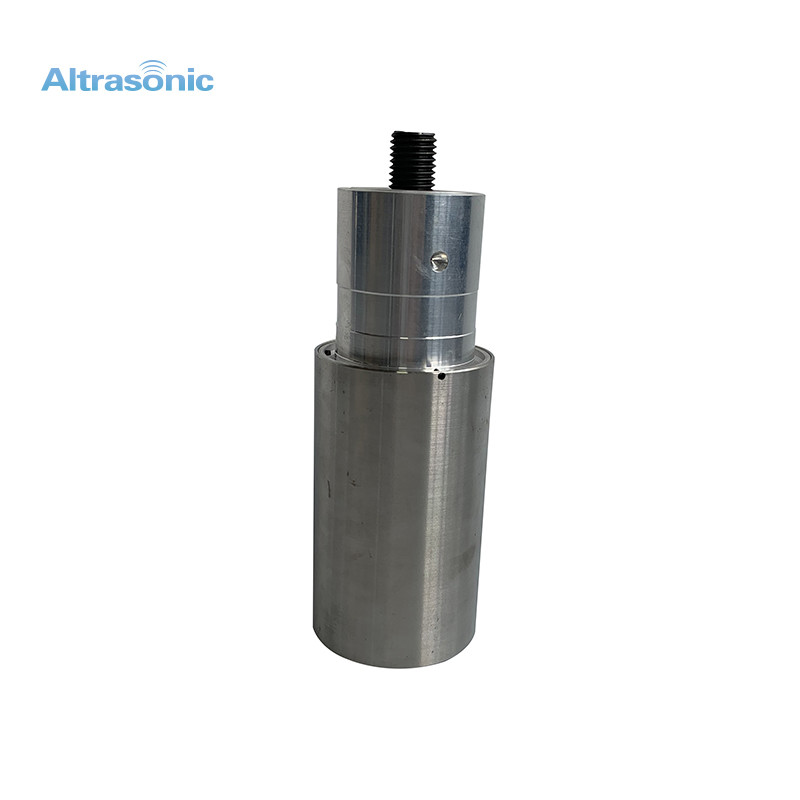

3000W High Power Columnar Ultrasonic Converter Replacement 20khz Rinco Type with 2Ceramics

Name: 3000W High Power Columnar Ultrasonic Converter Replacement 20khz Rinco Type with 2Ceramics
Brand: Altrasonic
Price: 1 USD

Buy cheap 3000W High Power Columnar Ultrasonic Converter Replacement 20khz Rinco Type with 2Ceramics product

Brand Name : Altrasonic

Model Number : HSR-20

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 3000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic Converter

Frequency : 20Khz

Power : 3000w

Ceramic Diameter : 50mm

Joint Bolt : M16*2

Ceramic Disc : 2 PCS

Material : Titanium, Aluminum Materials Optional

Amplitude : 12 Um

Certificate : CE

Type : Customized

Contact Now

3000W High Power Columnar Ultrasonic Converter Replacement 20khz Rinco Type with 2Ceramics

Specifications:

Model	HSR-20
Frequency	20khz
Output power	3000watt
Joint bolt	M16*2
Ceramic disc Diameter	50 mm
Quantity of Ceramic discs	2 pcs
Bolt	Fixing with transducer body
Amplitude	12um
Application	welding machine

Description:

The Replacement Converter for Rinco 20khz machine Direct replacement for the Rinco 20khz machine that delivers lower cost, rugged quality and superior value.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced

(one time).

Applied Range:

Replacement ultrasonic converter for 20khz Rinco machine, for use with 20KHz welding machine.

Competitive Advantages:

Titanium materials and Aluminum materials optional.
Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
One by one testing to ensure that each transducer performance are excellent.
In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Product display

3000W High Power Columnar Ultrasonic Converter Replacement 20khz Rinco Type with 2Ceramics
