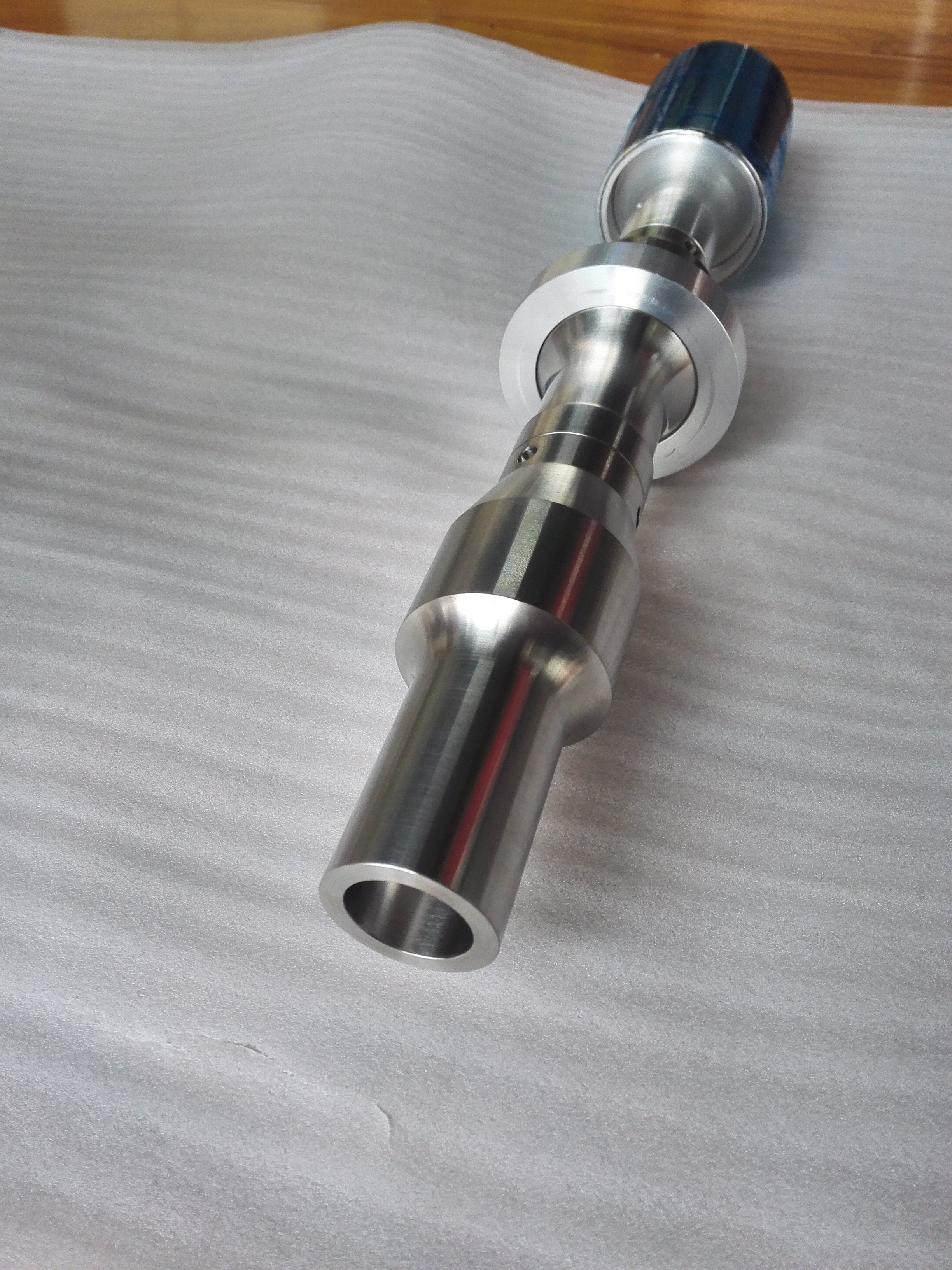

Ultrasonic Cap Welding 20Khz titanium circular Horn welding equipment
Description:
Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K, 30K three different frequencies. Can be different for the following purposes;
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.
Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.
Portable Ultrasonic Plastic Spot welding gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.
| ITEM | HS-PT20 |
| Frequency | 20Khz |
| Power | 2000W |
| Material | titanium |

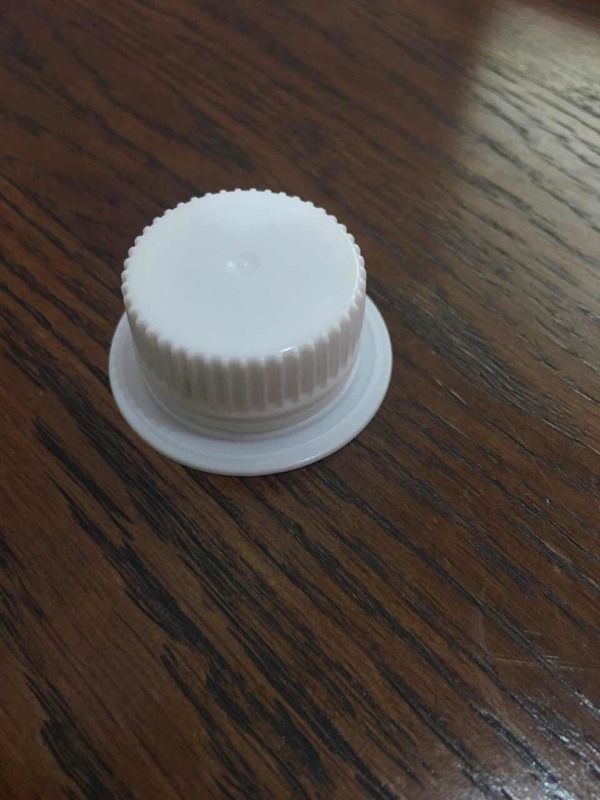

| Application | Cap welding |
Competitive Advantage:
Rapid sonotrode exchange
High quality, heavy duty aluminum housing
High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet
Timer-controlled air cooling as an option
Mobile – can be transported by handle on the generator case
Ultrasonic Cap Welding 20Khz titanium circular Horn welding equipment
