100 W Portable Ultrasonic Cutting Machine With Replaceable Blades For Nonwoven Cloths

40khz 100w Portable Ultrasonic Cutting Machine with Replaceable Blades for Nonwoven Cloths

Description:

Ultrasonic cutting vibration system is mainly composed of ultrasonic transducer, ultrasonic booster and cutting blade. Among them, the role of ultrasonic transducer is to convert electrical signals into acoustic signals; Booster is an important part of ultrasonic machining equipment. It has two main functions :(1) energy accumulation is the amplification of mechanical vibration displacement or velocity amplitude, or the concentration of energy on a smaller radiant surface for energy accumulation;(2) effectively transfer sound energy to the load as a mechanical impedance converter, impedance matching between the transducer and the acoustic load, so that ultrasonic energy can be transmitted to the load more effectively from the transducer. The combination form of ultrasonic amplitude transformer and cutting blade is adopted in this system. In order to obtain a large amplitude amplification factor (Am), stepped amplitude transformer is adopted.

Specification:

Model:HS-C40

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

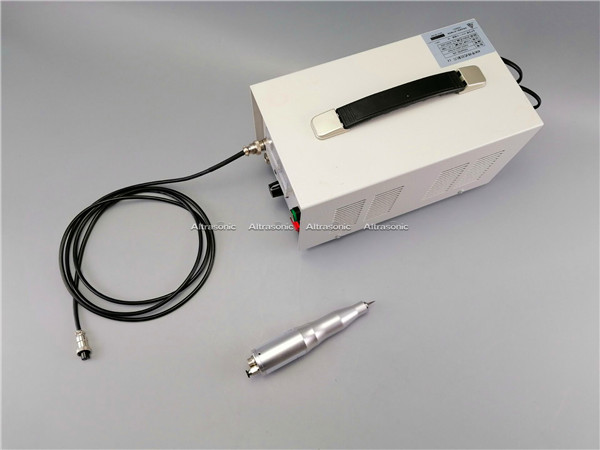

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

Accessory:pedal 1pcs

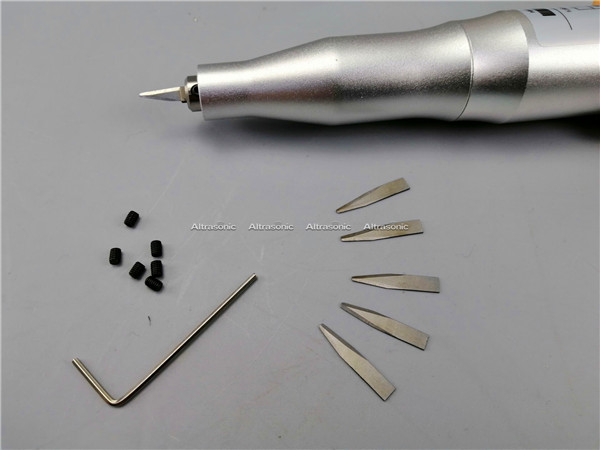

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-m

Application:

Wide range: all kinds of textile materials can be cut by ultrasonic.For example, natural fibers, synthetic fibers, including aromatic polyphthalamine fibers, carbon fibers and glass fibers, woven fabrics, non-woven fabrics and knitted fabrics can be cut by ultrasonic waves.

Advantage:

1. High stability

When the ultrasonic generator works, it generates electromagnetic vibration of 40khz, which is converted into mechanical vibration and transmitted to the cutter and cutting materials. Mechanical cutting is carried out, so no sharp edge is needed, and the blade wears little. At the same time, the cutter head can be replaced by itself.

2. No pollution

Ultrasonic knife cutting, the cutting head temperature is lower than 50 ℃, won't produce smoke and bad smell, ruled out when cutting damage and danger of the fire.

3. Cut neatly

Because ultrasonic wave cuts through high-frequency vibration, the material will not adhere to the blade surface, cutting only requires a small pressure, for fragile and soft materials are not deformation and wear, fabric cutting at the same time automatically sealing edge, will not cause edge collapse.

4. Simple operation

5. The cutting knife is connected to the ultrasonic generator, which is connected to the 220V power supply. When the switch is turned on, it can be used for cutting, supporting handheld and machine-mounted cutting (three-axis mechanical arm can be added).

Warranty:

We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

ultrasonic cutting knife

ultrasonic cutting devices

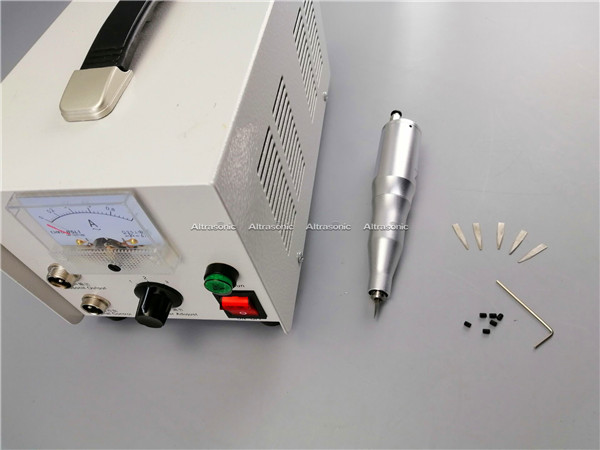

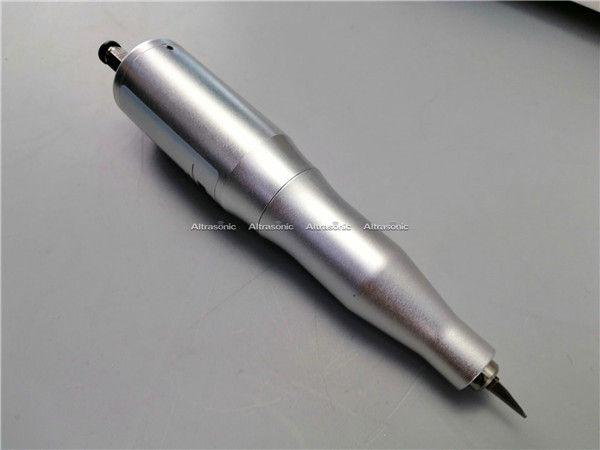

100 W Portable Ultrasonic Cutting Machine With Replaceable Blades For Nonwoven Cloths Images
