30KHZ Ultrasonic Cutter for Themoplastic Triming Installed on Machine or Lines
Description:
Ultrasonic cutting is a new technology with enormous potential to replace more traditional cutting processes. Ultrasonic cutting has already being implemented in a wide variety of applications all over the world. Ultrasonic cutting differs greatly from other cutting methods. This technology replaces waterjet, laser cutting, hard tooling and manual trimming or routing methods. Whatever your current approach, Altrasonic ultrasonic technology can reduce operating costs and improve trim quality.
Specification:
| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 200W |

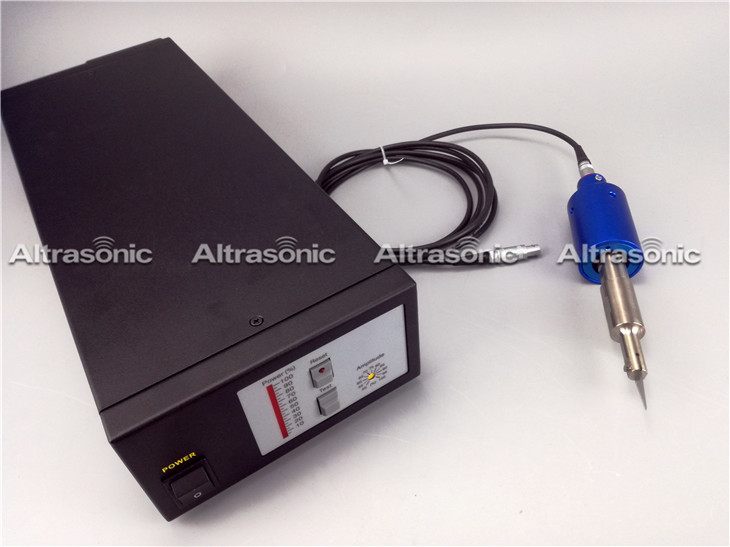

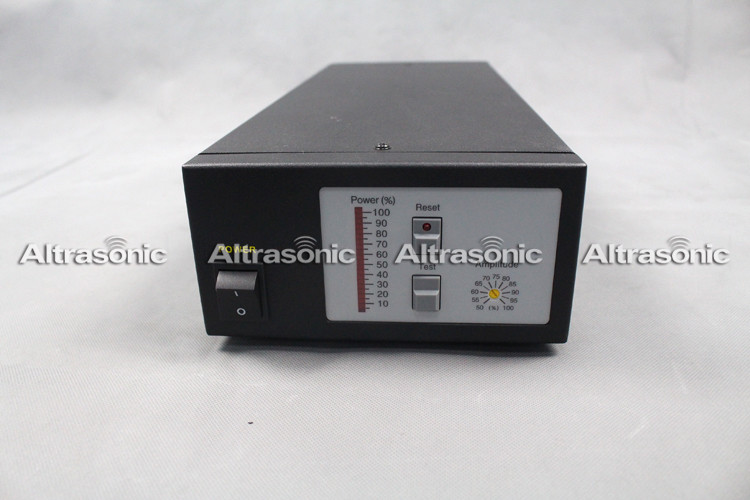

| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；
1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | titanium alloy, stainless steel |
Advantages:
Clean and Precise: Improves cut quality for carpets, headliners, plastics and more, compared to conventional methods
Small Footprint: With its slim design and efficient operation, reducing your operating and retooling costs.
Lean Operation: Designed for maximum flexibility and uptime with self-sharpening tools and fast changeover.
Applications:
Resin plate
Glass fiber (GFRP)
Formed decorative film
Foam
Blow-molded parts
Injection-molded parts
Carbon fiber (CFRP)
Aluminum foil composites
Non-woven fabrics
Controlled-depth kiss cutting
FAQ
1. How can I ensure your ultrasonic cutter sharp enough for my application?
The sharpness of Ultrasonic Cutters differs according to various combinations of oscillator, transducer, and blade. Because of abundant experience, our company prepares combinations suitable for various materials. Since we can select the model most suitable for your cutting work, we ask that you confirm the sharpness of the selected model by test cutting first.
2. Can it be installed on my present lines?
Yes, ultrasonic cutting and processing equipment can be installed easily. Altrasonic equipment can be as simple as removing the conventional knife and replacing it with a plate to which the ultrasonic knives are attached. Another option is replacing the existing cutting/slitting station with a gantry system that straddles the conveyor you now have.
3. Is the equipment reliable?
Altrasonic Ultrasonics technology has been continuously improved over our 10 years in the business. All equipment and tooling designs undergo many months of reliability testing before being approved for industrial grade applications.
