High Performance Ultrasonic Welding Transducer Of 35Khz Rinco Replacement Type

High Performance Ultrasonic Welding Transducer Of 35Khz Rinco Replacement Type

Specifications:

Description:

The 35Khz 900W Ultrasonic Welding Transducer for Rinco Welding machine / spot welder is applied to different type ultrasonic welding machine, standard welding machine, Rinco type. And can be connected with different type welding horn.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

The transducer is an energy converter composed of an electrode, a piezoelectric ceramic, a bolt, a front end and a back end.

.

Application:

Transducers are widely used in various industries. The following table lists several application directions of consumer industries.

Competitive Advantage:

1.Titanium, aluminum, steel materials of horn optional.

2.Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3.One by one testing to ensure that each transducer performance are excellent.

4.In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

FAQ:

Q:What are the materials of the front cover and the back cover of the transducer?

A:Their materials are generally aluminum and titanium materials, sometimes using special steel materials.

high frequency ultrasonic transducer

portable transducer

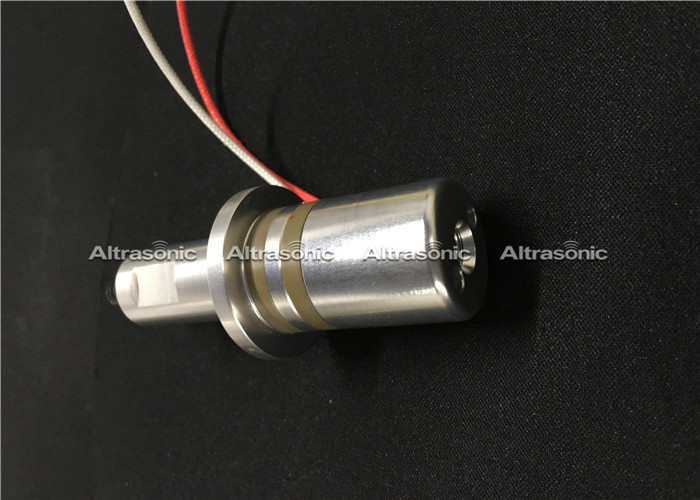

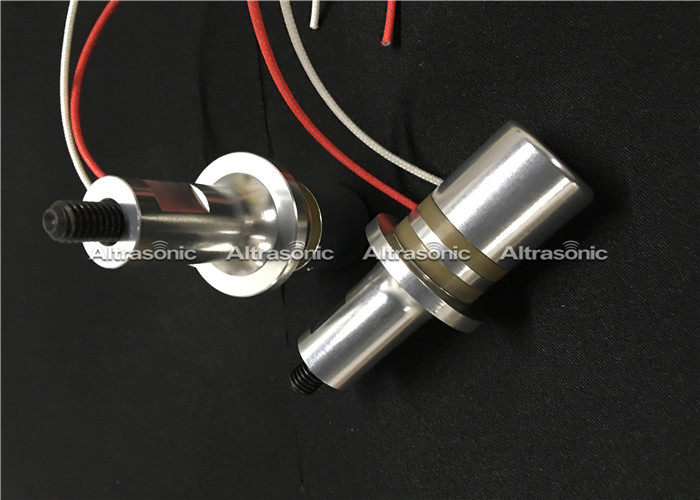

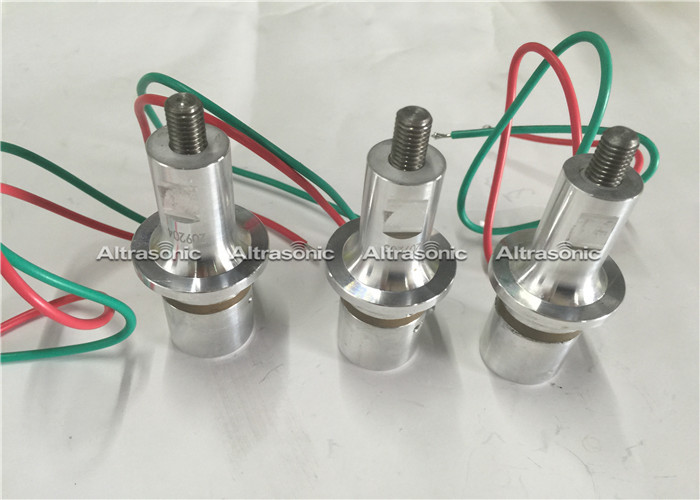

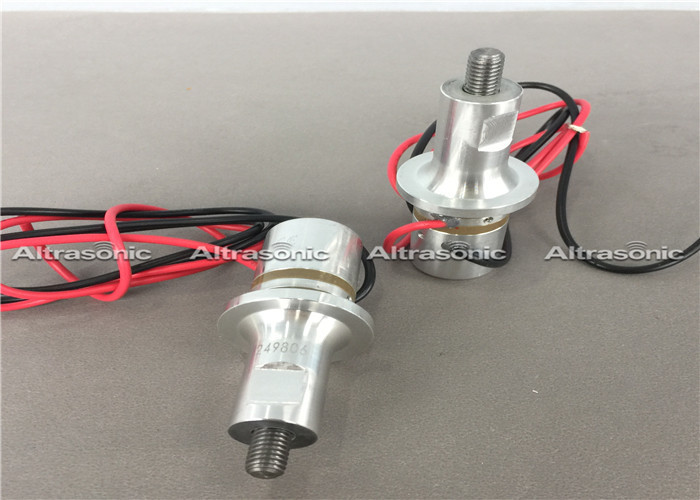

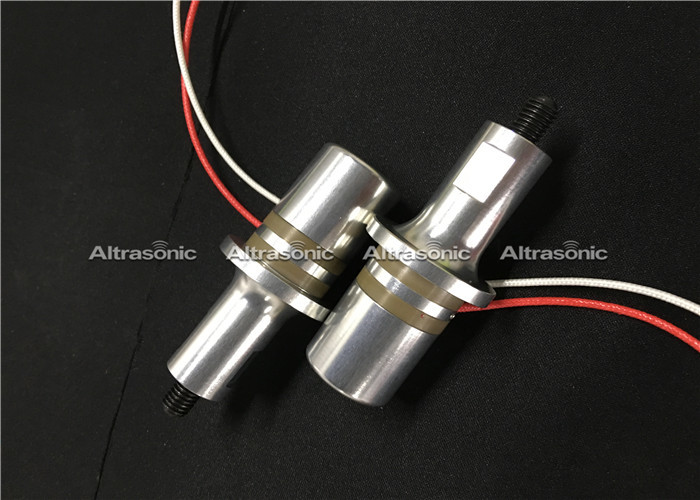

High Performance Ultrasonic Welding Transducer Of 35Khz Rinco Replacement Type Images
